INON Multi Ball Arm
INON Multi Ball Arm
SKU:4.56212E+11-0
Couldn't load pickup availability
Multi Ball Arm

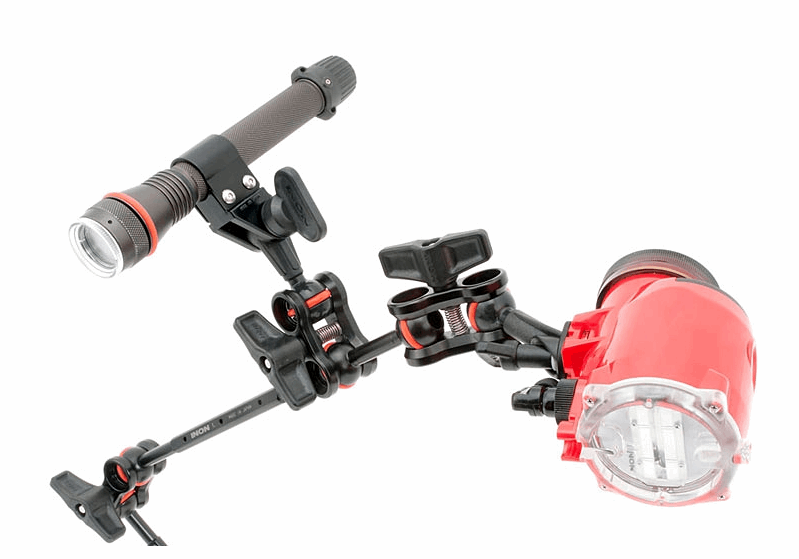

New concept arm carrying extra ball-joint(s) besides both ends. Only with additional "Clamp III", another arm is attached on the middle of a Multi Ball Arm as like diverging a branch to create multiple strobe/LED flashlight system like a tree diagram.
Six different effective lengths (center to center distance between both ends balls) from 120mm/4.7in (Multi Ball Arm SS) to 440mm/17.3in (Multi Ball Arm XL) are available. Multi Ball Arm L and XL have total four ball-joints. As same as Stick Arms, Multi Ball Arms carry various functions with wide range of optional accessories.
Multi Ball Arm SS
■Full length: 141mm (5.6in)
■Effective length: 120mm (4.7in)
■Weight: 61g (2.2oz) [air] / approx.37g (1.3oz) [underwater]
■Multi Ball Arm S
■Full length: 171mm (6.7in)
■Effective length: 150mm (5.9in)
■Weight: 70g (2.5oz) [air] / approx.42g (1.5oz) [underwater]
■Compatible accessory:
M5 Joint + Shoe Base Spacer
M6 Joint + Direct Base III
M6 Joint + Direct Base YS RT
■Multi Ball Arm ML
■Full length: 281mm (11.0in)
■Effective length: 260mm (10.2in)
■Weight: 93g (3.3oz) [air] / approx.56g (2.0oz) [underwater]
■Compatible accessory:
M5 Joint + Shoe Base Spacer
M5 Joint + Lens Holder for Float Arm
M6 Joint + Direct Base III
M6 Joint + Direct Base YS RT
Stick Arm Float S (one)
■Multi Ball Arm L
■Full length: 341mm (13.4in)
■Effective length: 320mm (12.6in)
■Weight: 116g (4.1oz) [air] / approx.69g (2.4oz) [underwater]
■Compatible accessory:
M5 Joint + Shoe Base Spacer
M5 Joint + Lens Holder for Float Arm
M6 Joint + Direct Base III
M6 Joint + Direct Base YS RT
Stick Arm Float S (one)
■Multi Ball Arm LL
■Full length: 401mm (15.8in)
■Effective length: 380mm (15.0in)
■Weight: 123g (4.3oz) [air] / approx.75g (2.6oz) [underwater]
■Compatible accessory:
M5 Joint + Shoe Base Spacer
M5 Joint + Lens Holder for Float Arm
M6 Joint + Direct Base III
M6 Joint + Direct Base YS RT
Stick Arm Float S (maximum two)
■Multi Ball Arm XL
■Full length: 461mm (18.1in)
■Effective length: 440mm (17.3in)
■Weight: 145g (5.1oz) [air] / approx.87g (3.0oz) [underwater]
■Compatible accessory:
M5 Joint + Shoe Base Spacer
M5 Joint + Lens Holder for Float Arm
M6 Joint + Direct Base III
M6 Joint + Direct Base YS RT
Stick Arm Float S (maximum two)
Multi Ball Arm ML, L, LL and XL can hold Lens Holder for Float Arm via "M5 Joint". (Multi Ball Arm SS is not compatible with M5 Joint and Multi Ball Arm S is not compatible with a lens holder)
The Shoe Base is attached via "M5 Joint" and "Shoe Base Spacer" to hold a strobe or LED flashlight. (The Multi Ball Arm SS is not compatible with M5 Joint)
The Direct Base III is attached via "M6 Joint" to hold single strobe or maximum two LED flashlights. (The Multi Ball Arm SS is not compatible with M6 Joint)
The Stick Arm Float S is attached to add approx. 84g/3.0oz buoyancy and support comfortable gripping. The Multi Ball Arm ML and L can have one while Multi Ball Arm LL and XL can have maximum two Stick Arm Float S. (Multi Ball Arm Arm SS and S cannot have the Stick Arm Float S)
