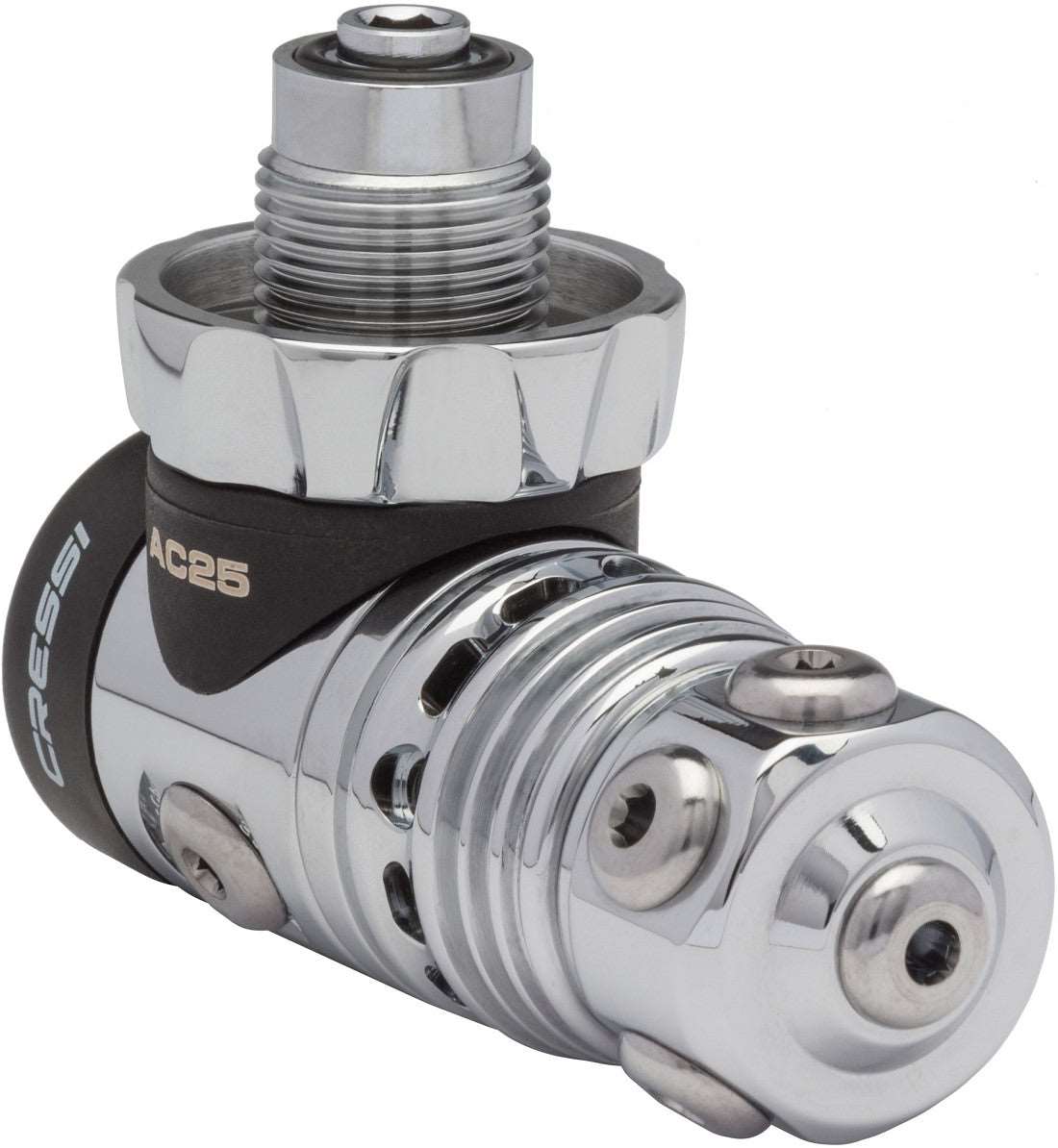

CRESSI AC25m 1st STAGE

The AC25 is the third generation of Cressi’s IP adjustable balanced piston first stage.

It features 2 high-pressure ports and 5 low-pressure ports. 4 low-pressure ports are located on a rotating turret that ensures that regulator and instrument connections are always in the right position. The fifth port is a co-axial Hi-Flow port and is located at the top of the turret. The rotating turret swivels on 360° axis and features 5 low-pressure ports designed to allow the use of more connections without interfering between them.

It features the external direct IP adjustment system that can be set using a simple Allen key.

The hi-flow conic shape filter is the same for INT and DIN. The spring and the spring bush are coated preventing rust. Its technologically advanced design delivers consistent intermediate pressure and high performance even with low tank pressures. The AC25m it features a matte finish, in gun metal-coated brass.

TECHNICAL FEATURES 1^ST STAGE

• 3^rd generation Cressi’s IP adjustable balanced piston first stage
• 2x 7/16” HP ports UNF
• 5x 3/8” LP ports UNF, 1 port on the turret top
• Operating pressure:
• INT version: 230 BAR | 3,336 PSI
• DIN version: 300 BAR | 4,351 PSI
• Calibration pressure: 9.8÷10 BAR | 142÷146 PSI
• 360° revolving head
• Realized in brass-coated, with a matte finish
• The sintered conical filter protects from any impurity
