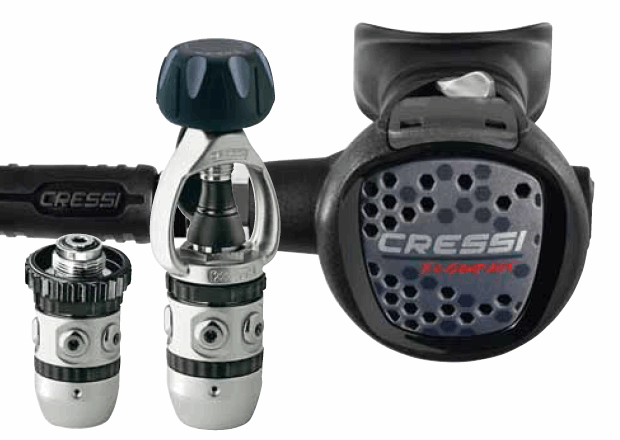

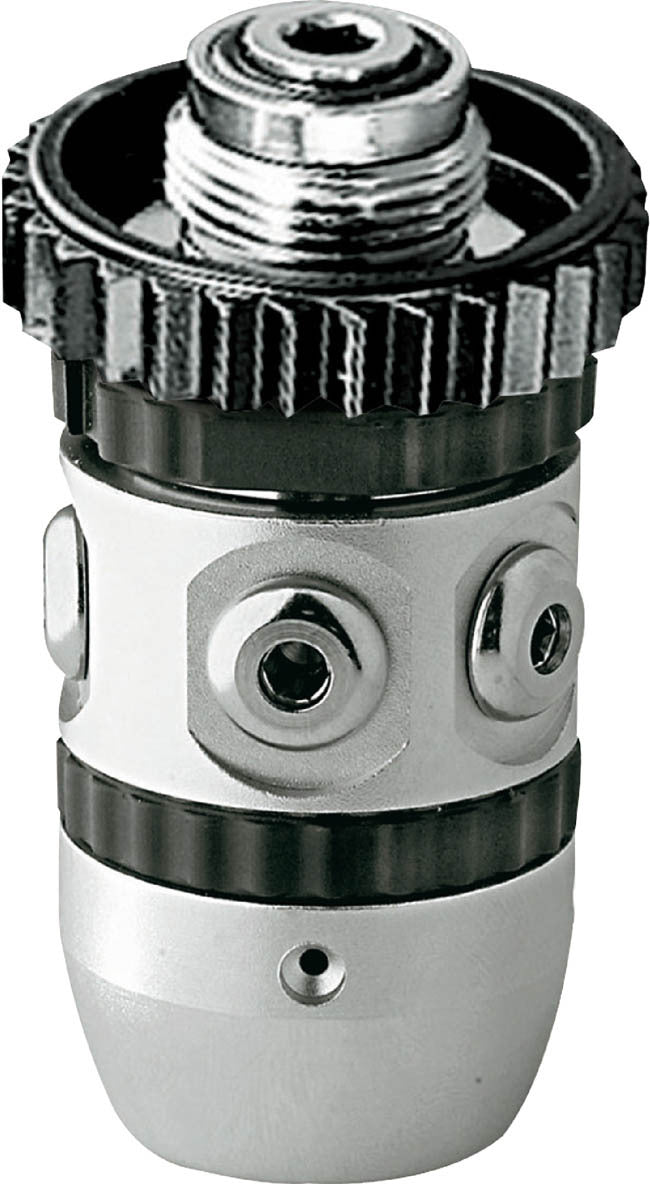

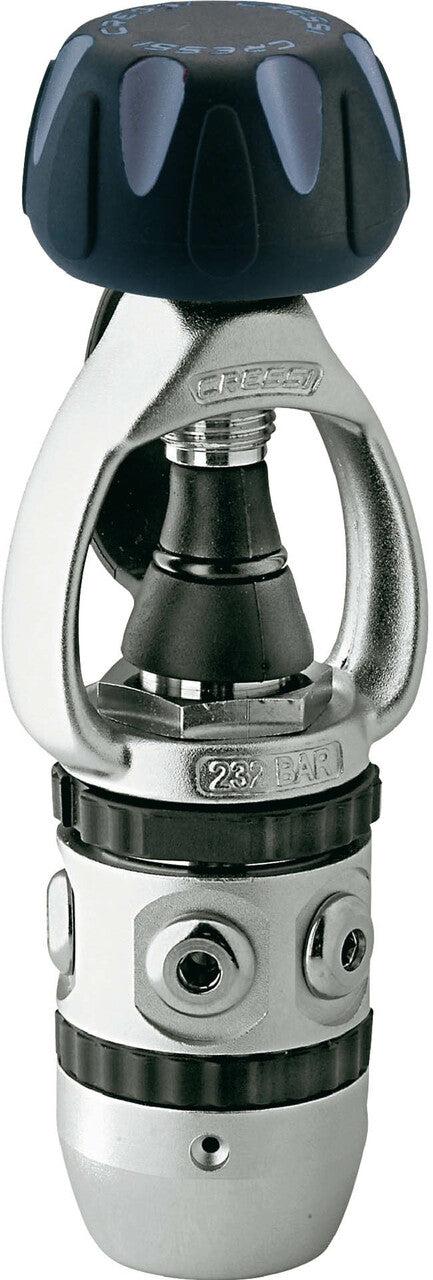

1st STAGE AC2:
Simple piston 1st stage, a "work mule" that is affordable, simple, reliable and robust, suitable for intense use. This first stage is appreciated by dive centers and professional companies who consider it to be a very rentable tool, due to its low cost and practically nonexistent need for maintenance, as well as a surprising level of performance.
Conical filter
One 7/16” high pressure port (HP) and four 3/8” low pressure ports (LP).
Complete maintenance kit which includes very affordable spare parts. Weight: Int: 615 g / DIN 480 g

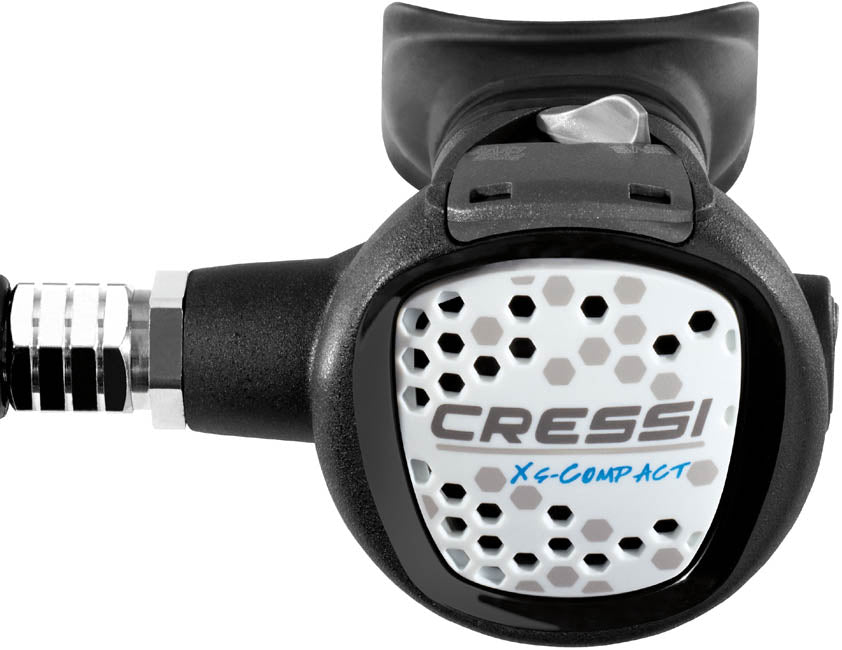

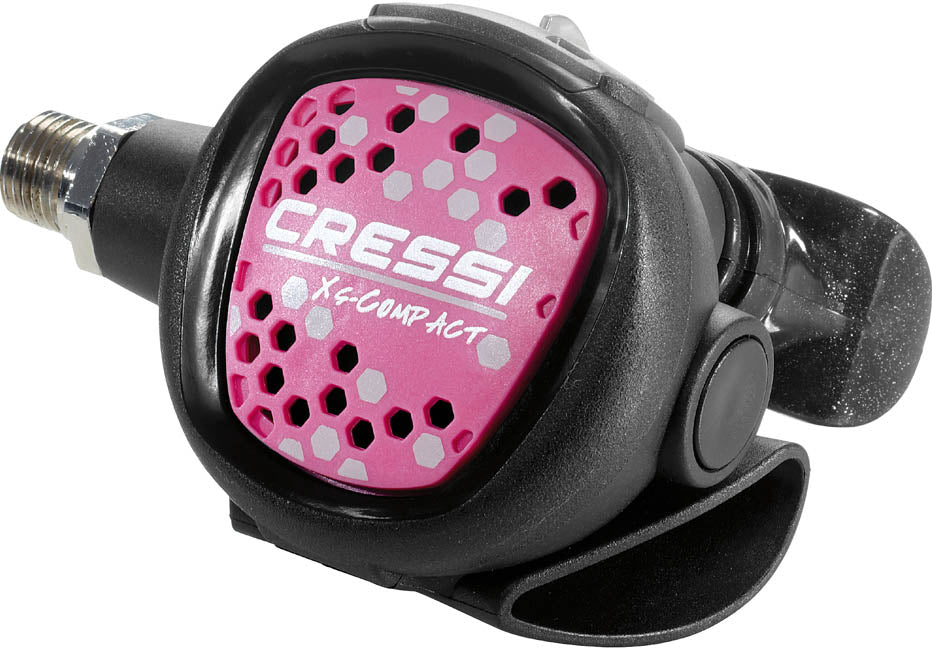

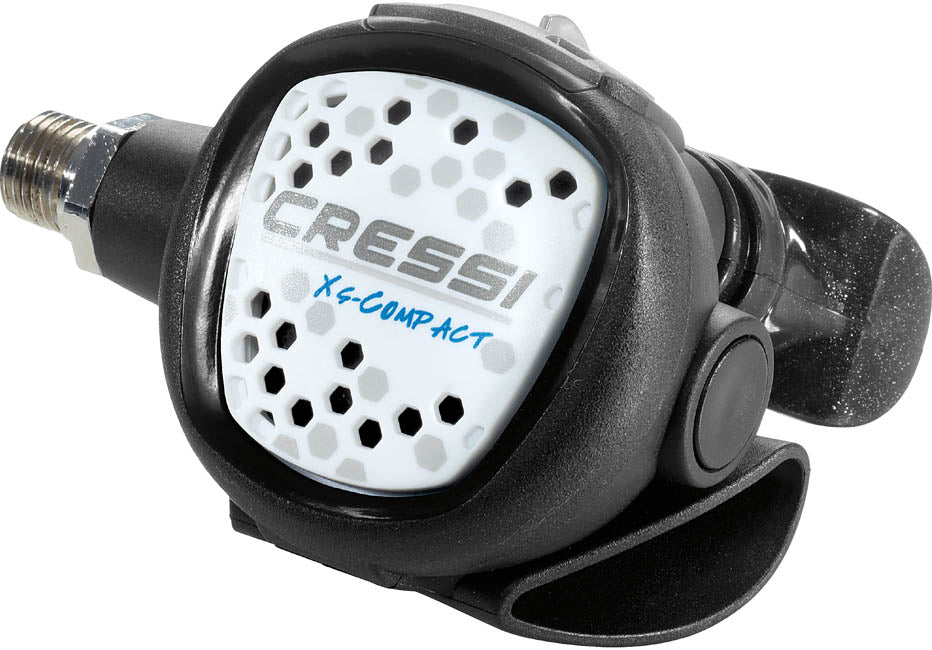

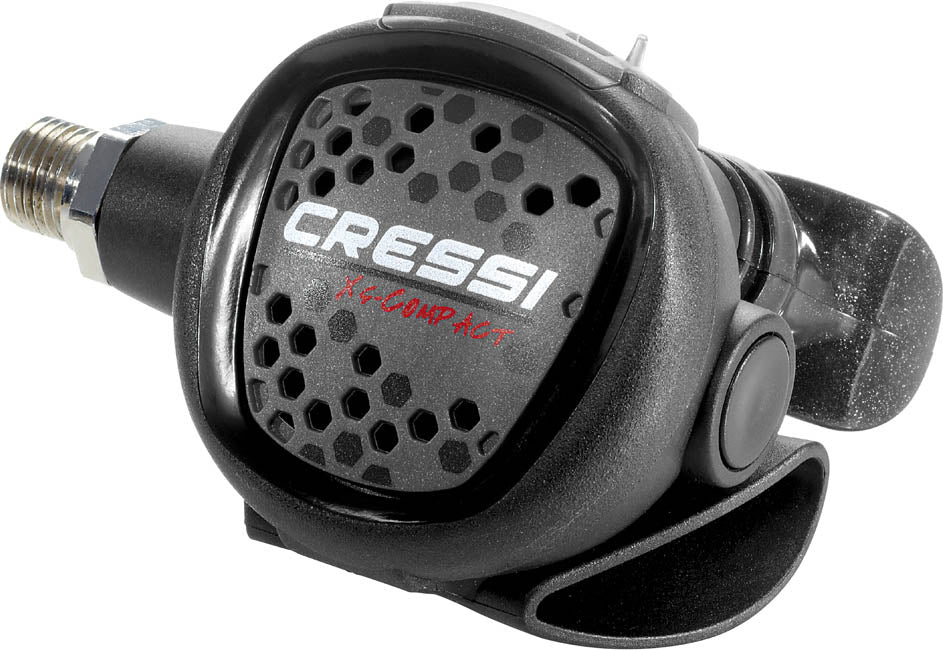

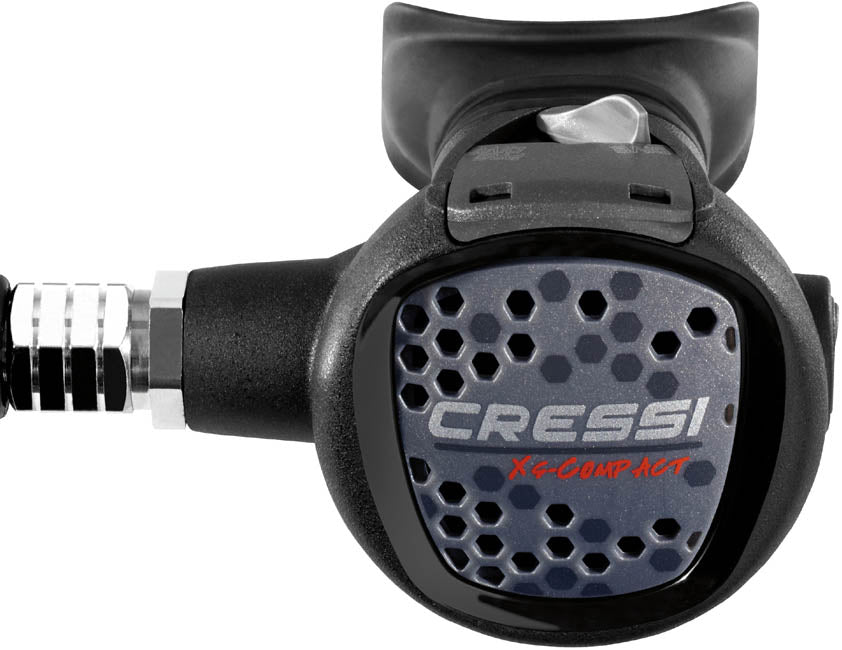

2nd STAGE XS COMPACT:
New ultra simplified monocoque second stage in ABS + elastomer, small (6 cm in diameter), very light (145 g) and robust, designed and built to have a minimum number of components.
Asymmetrical perforation in the front cap.
Exhalation effort particularly reduced
Practically integrated purge button,
TECHNICAL FEATURES 1ST STAGE
- Piston design
- 1 7/16” HP ports UNF
- 4 3/8” LP ports UNF
- Operating pressure:
INT version: 230 bar | 3,336 psi
- Calibration pressure:
9.8÷10 bar | 142÷146 psi
- Brass body Electroless Nickel plated
- High capacity conical fi lter
electroless nickel plated
- Long lasting piston: AISI 316 stainless steel
- Extremely easy in maintenance since IP
is adjustable from the outside
- Stainless steel spring
- Flow rate: 74.16 cu ft/min (2,100 l/min)
- Yoke version weight: 22.4 oz / 635 g
TECHNICAL FEATURES 2ND STAGE
- Downstream system
- Adjustable venturi effect
- Patented antifriction lever
- Big purge button
- Anti-scratch surface
- Bayonet-type cap holder with security lock
- Removable exhaust tee
- Weight without hose: 135 gr
COMBINATION PERFORMANCE
- Average Cracking effort 6 mbar
- Average breathing effort 1 J/l
JACKETED HOSE extremely light and flexible weight: 153 gr
CERTIFICATION EN250/2000
