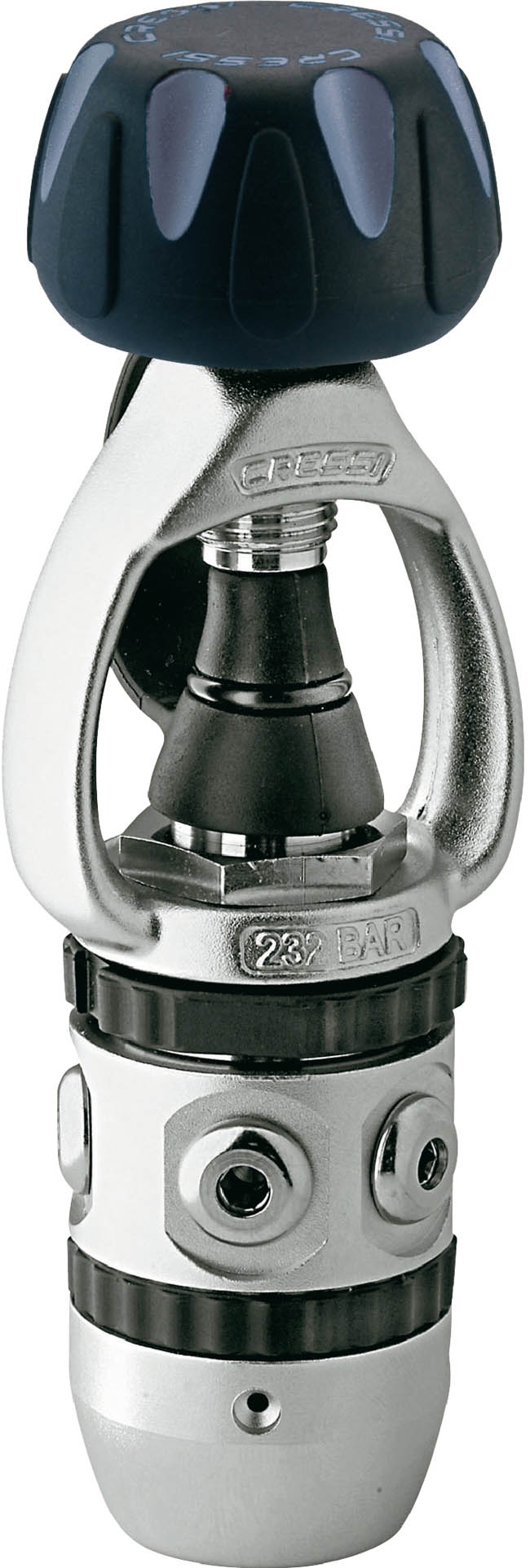

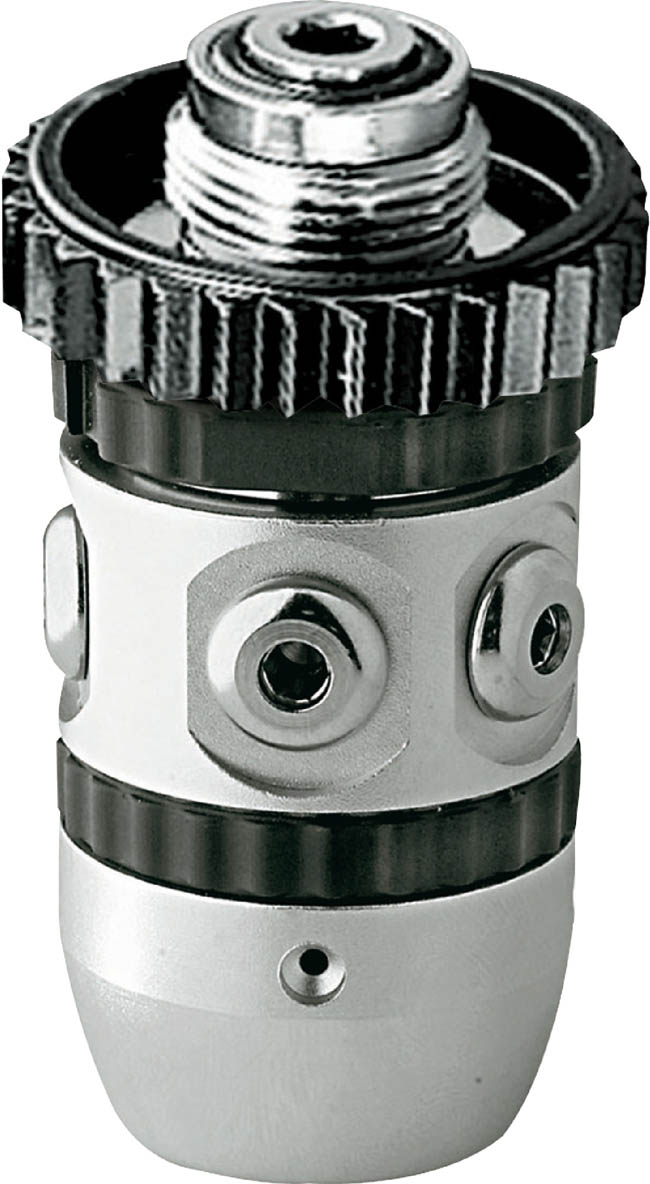

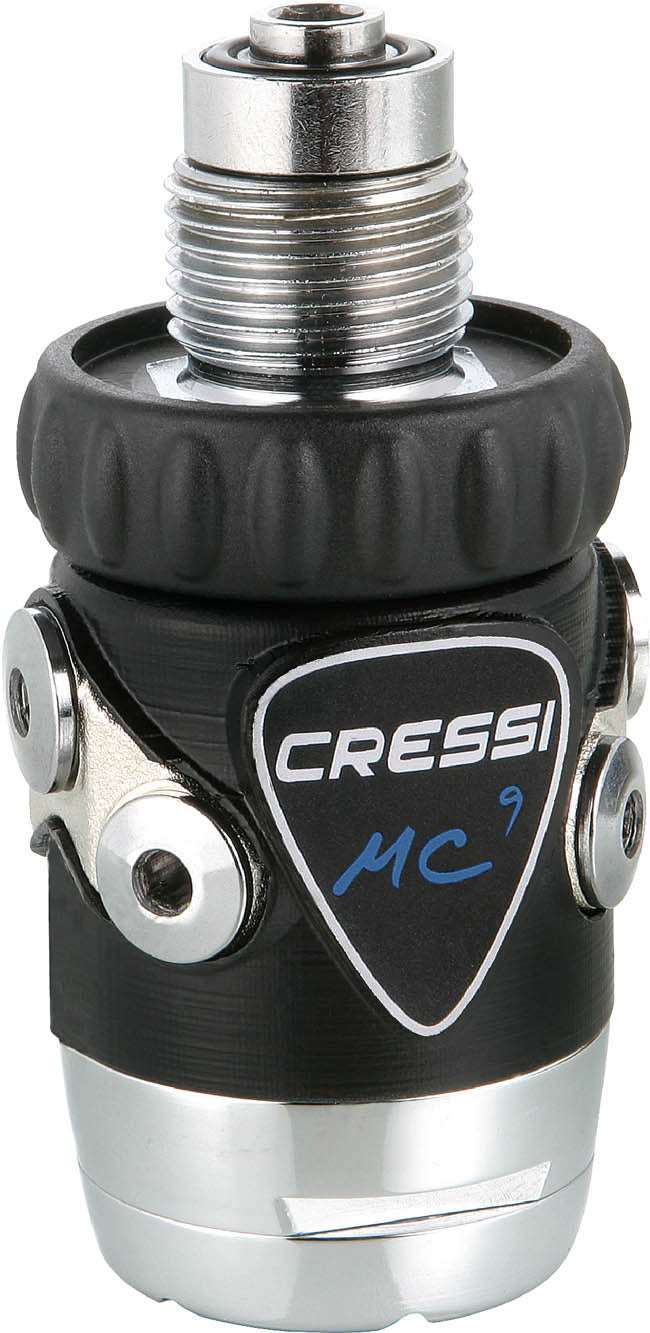

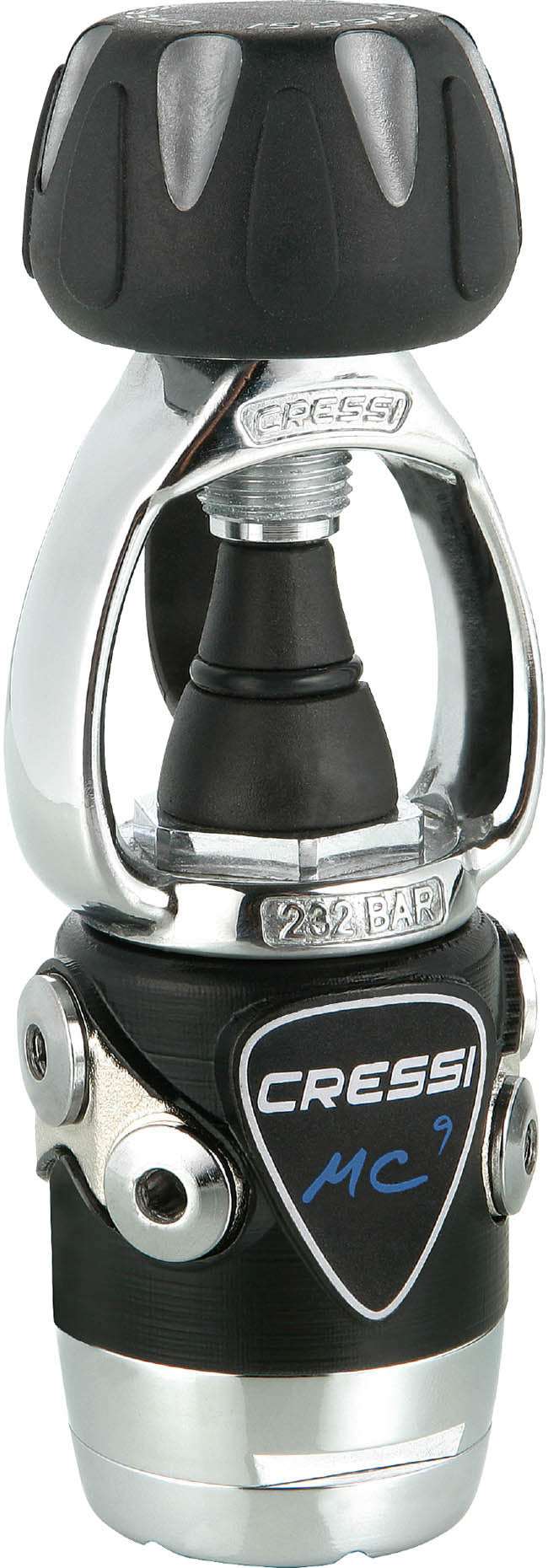

TECHNICAL FEATURES 1ST STAGE - Balanced diaphragm (seal chamber for MC9SC) - 2 outlets HP 7/16 UNF - 4 outlets MP 3/8 UNF - Service pressure: 300 bar (4350 psi) DIN version, 232 bar (3365 psi) Yoke version - Calibration pressure: 10 Bar - Brass body Electroless Nickel plated - High capacity conical filter electroless nickel plated - Aisi 316 removable nozzle - Hyper-balancing - Anti-pressure drop pneumatic spring - Setting spring: stainless steel with micropeening treatment - Replaceable cylinder with anti-friction and anti-corrosion properties - Elastomer protector - Flow rate: 4500 l/min - Yoke version weight: 650 gr - Din version weight: 510 gr
