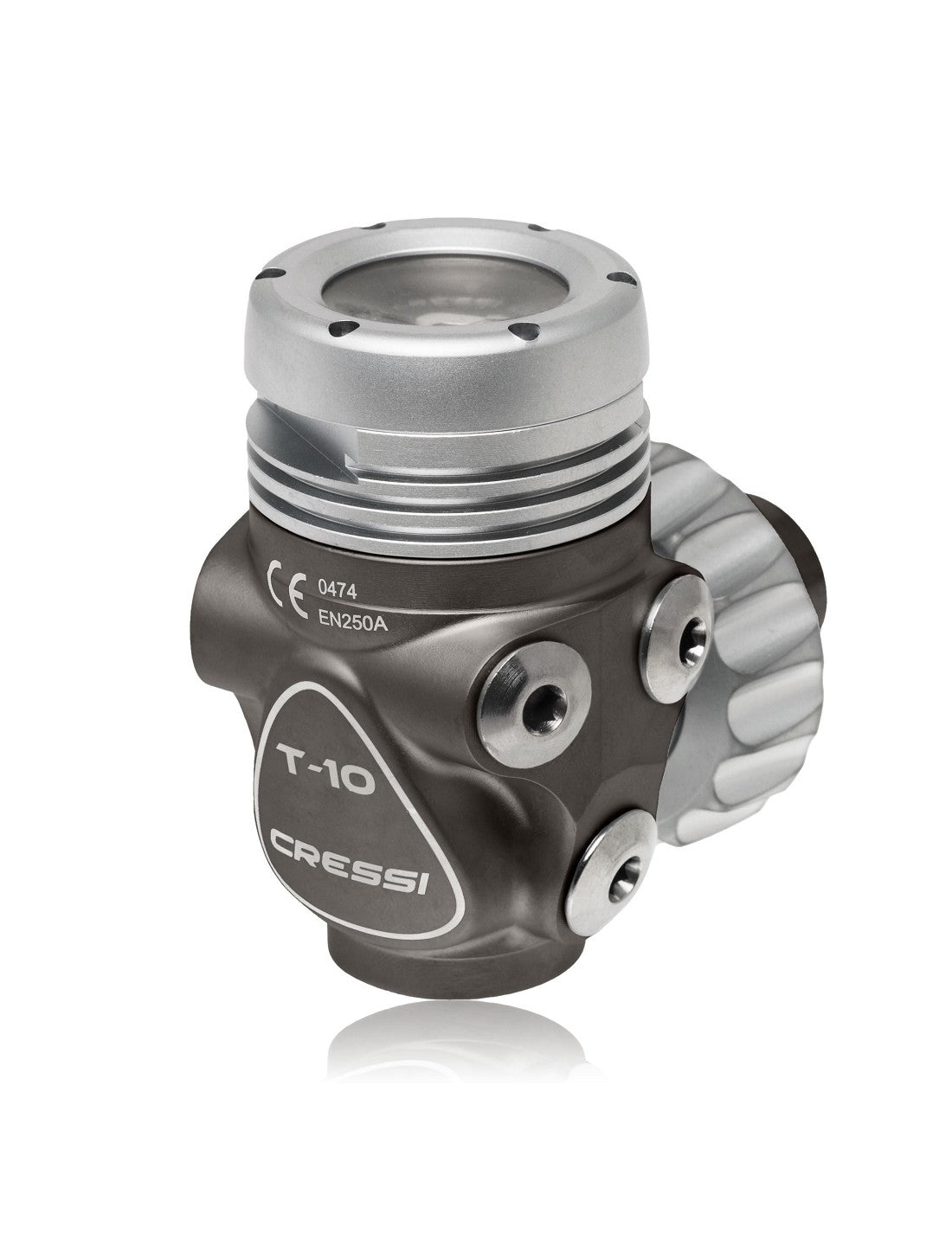

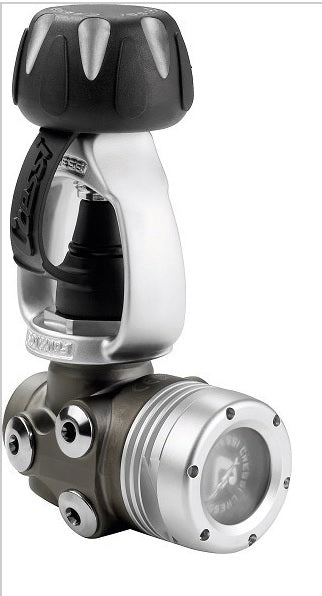

CRESSI T10 SC 1st STAGE

CERTIFICATION EN250/2014 FOR COLD WATER

THE T10-SEAL CHAMBER 1ST STAGE is environmentally sealed, protecting it against icing in cold water and against
contamination from particulate matter in silty conditions. When paired with the Master second stage, which
includes an internal heat exchanger, this regulator is an excellent choice for divers exploring the most extreme cold
water environments.

Very high performance regulator.

Ideal for seasoned or professional divers who need extremely high performing equipment that is both simple and resistant, without any of the usual accessories that may get damaged.

TOTAL WEIGHT
T10-SC/MASTER INT HOSE INCLUDED: 1.080 GR
T10-SC/MASTER DIN HOSE INCLUDED: 962 GR

TECHNICAL FEATURES 1ST STAGE
- Hyperbalanced diaphragm (Watertight chamber on T10-SC)
- 2 HP 7/16 UNF ports
- 4 MP 3/8 UNF ports
- Operating pressure: 300 bar (4350 psi) DIN Version,
232 bar (3365 psi) International version
- Calibration pressure: 10 bar
- Body coated with PVD process
- High-capacity conical filter in chemically
nickel-plated spherical bronze
- Removable nozzle in AISI 316 steel
- Hyperbalancing system
- Anti-pressure drop pneumatic spring
- Stainless steel calibration spring with micropeening treatment
- Low-friction technopolymer slider shaft
- Body protection in polyurethane thermoplastic
- Quantity of air supplied: 4500 l/min
- Weight, INT version: 720 gr
- Weight, DIN version: 602 gr
