APEKS DST NITROX 1st Stage Regulator

DST NITROX 1st STAGE

Apeks Nitrox regulators are suitable for use with up to 100% O2 and are colour-coded for easy identification.

The regulators have been specially cleaned and assembled in our purpose built class 'J' (10,000) Clean Room using oxygen safe components and lubricants and are available in DIN fitting.

Features

Nitrox equipment will be supplied in Europe in accordance with the EN 144-3 and the EN13949 which states that equipment sold in CEE (European Community) countries over 21% and up to 100% will be manufactured with the special M26 fitting.

The first stage has four medium-pressure ports all mounted on a rotating turret. This results in optimal hose routing while eliminating sharp bends in the hose.

Optional 5th port is available for sidemount or twin cylinder set ups.

Can be converted from a right-handed hose configuration to a left handed configuration. The process of changing the regulator to a left-handed configuration is both quick and simple. However, this procedure must ONLY be performed by an APEKS Authorised Service Technician.

Suitable for coldwater use (below 10 C / 50 F).

Compatible with EAN40 out of the box.

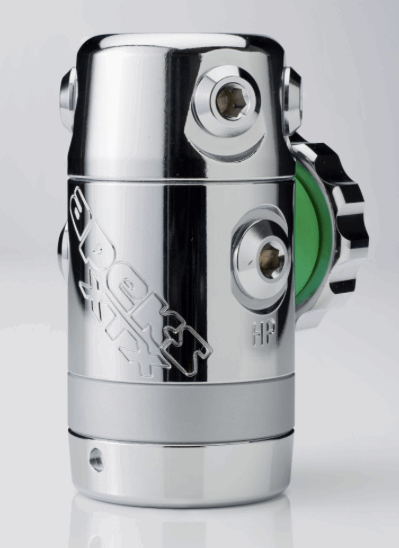

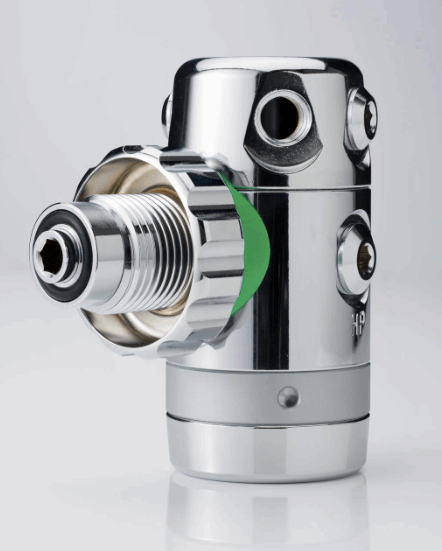

First Stage

• • Use the DST first stage.
  • Unique over-balanced, diaphragm design - as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
  • 2 HP ports and 4 MP ports on a rotating turret are angled for optimum hose routing.
  • An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out.
