Mares

Mares Abyss 22 Navy ll

Mares Abyss 22 Navy ll

SKU:416171-0

Regular price £694.00 GBP
Regular price Sale price £694.00 GBP
Sale Sold out
Tax included.

Mares Abyss 22 Navy ll Diving Regulator

The Abyss 22 Navy II scuba regulator is the answer to any challenge.

Carefully designed, this regulator guarantees top performance and reliability under the toughest conditions,

even when diving under ice!

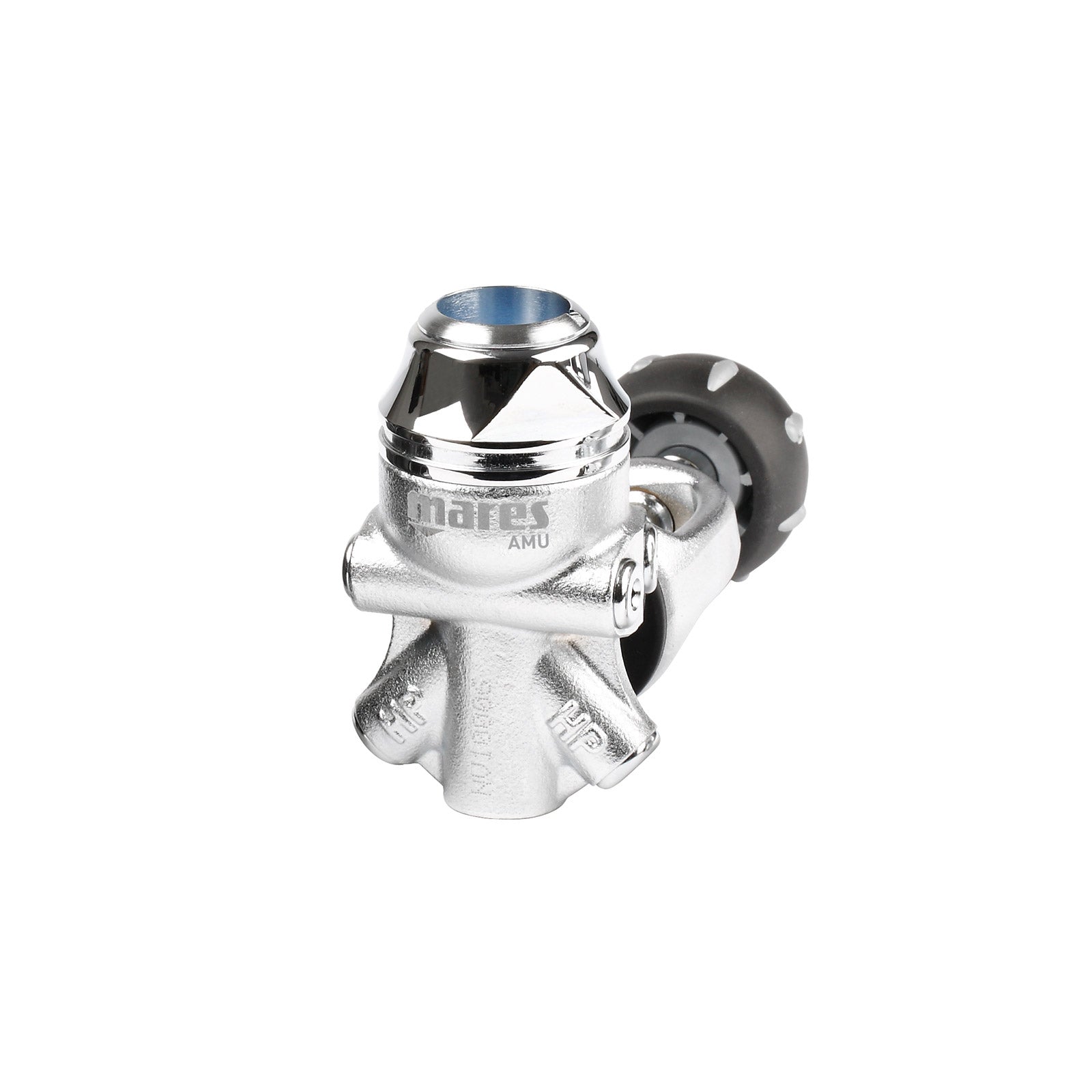

1st Stage

  • Hi flow DFC port
  • Pre-oriented ports
  • INT connection
  • CWD oil kit
  • US Navy approved

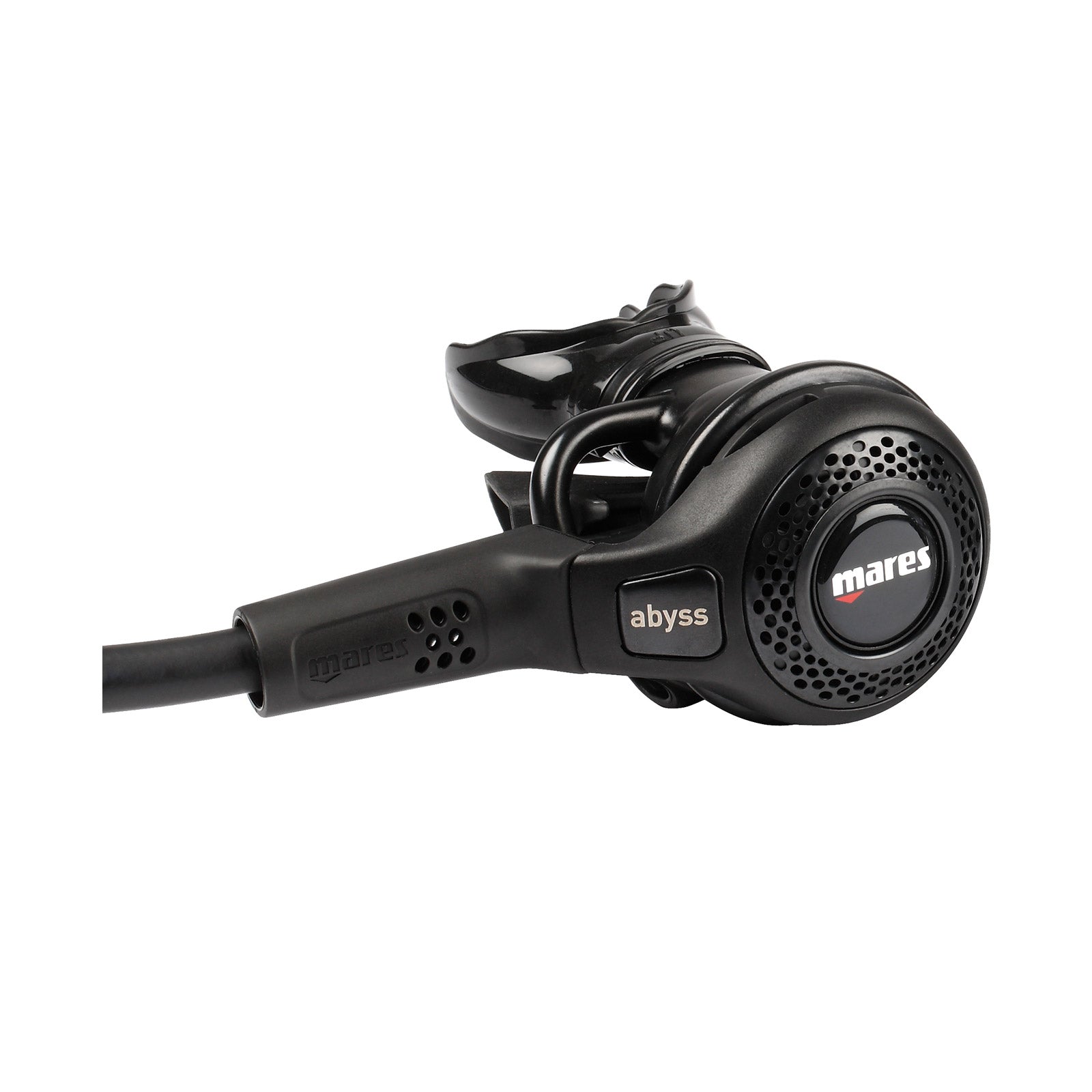

2nd Stage

  • VAD system
  • Mesh grid
  • Fluoropolymer resin finish
  • Rubber hose
  • Ideal for extreme cold water
  • Mesh Grid
    Patented design which reduces the impact of water flow onto the second stage diaphragm, thus eliminating free flows even in strong currents.
  • All Metal Technology
    Outstanding mechanical reliability and high thermal conductivity make our metal 2nd stages extremely long lasting and ideal for cold water dives. The high thermal conductivity of metal reduces also the dry mouth feeling during the dive.
  • VAD - Vortex Assisted Design
    The air bypass tube delivers air to the mouthpiece creating a swirling vortex with a low pressure area in the center that keeps the diaphragm down during inhalation, for very sensitive and easy breathing at all depths.
  • DFC - Dynamic Flow Control
    Minimizes intermediate pressure drop during inhalation thus maximizing gas delivery, especially under extreme conditions.
 Material: Metal Technology
First stage: Balanced Diaphragm
Lightweight yoke: Yes
HP Ports: 2 HP 7/16” UNF ports
LP Ports: 1 LP 1/2” UNF port, 3 LP 3/8” UNF ports

Technical Specifications

  INT DIN NX
First Stage Weight: 850g
Second stage weight (g): 269g 269g 269g
Total Weight (including hose): 1337g
